Why Does rnd() apply the same value to multiple selected objects in Cinema 4D?

Sibo
Sibo
  • Updated

Cinema 4D lets you type fixed number into almost any numeric field but it also allows you to type in math formulas. When several objects or tags are selected at once, that formula can also give each one a different result. This article shows how to get a genuinely different random value per object, and why the obvious approach gives everything the same number.

Why rnd() on its own gives every object the same value

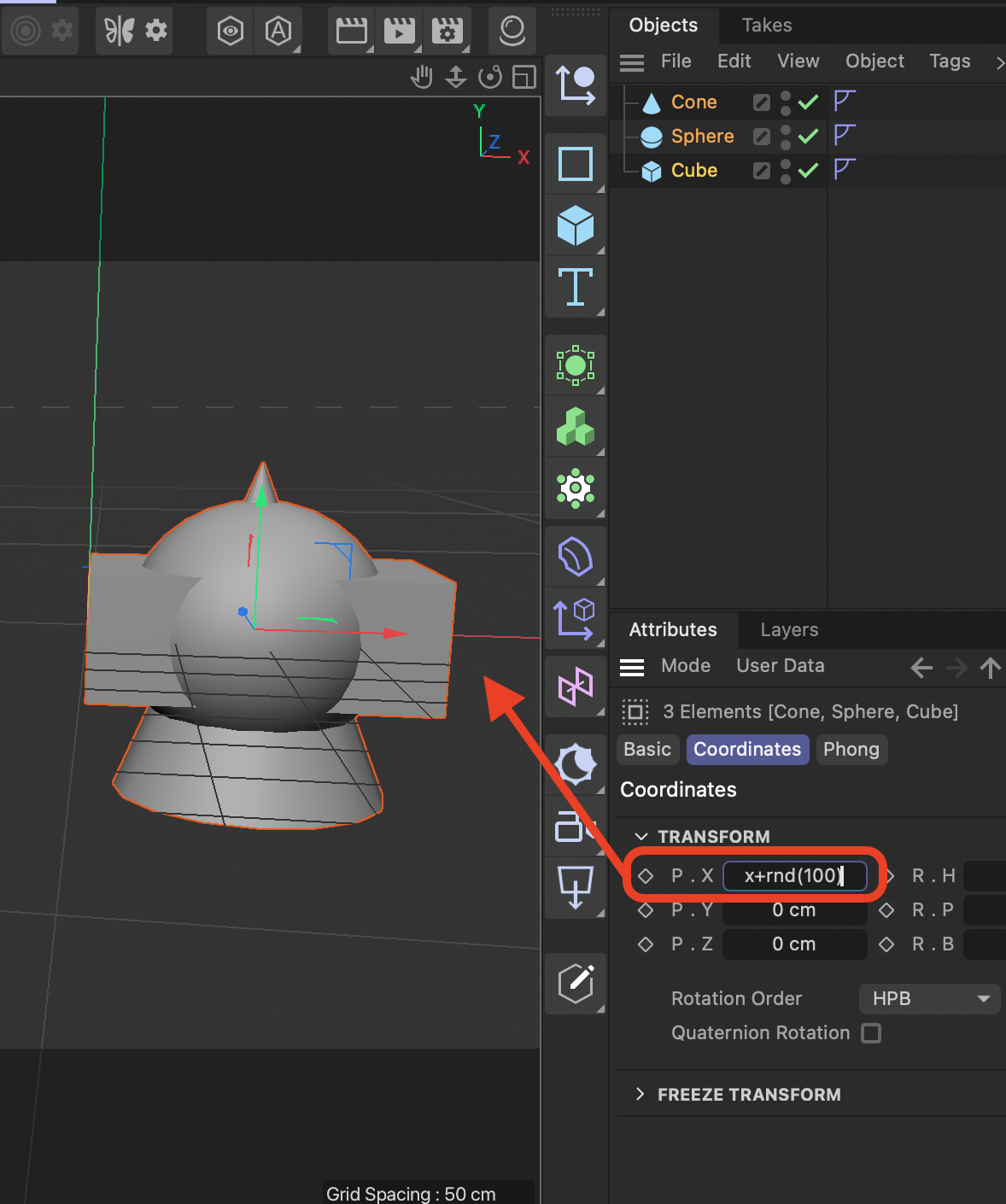

Select several objects, then type an expression like this into a numeric field in the Attribute Manager:

x+rnd(100)

The x stands for the value the field already had, and rnd(100) asks for a random number between 0 and 100. Without a seed, Cinema 4D generates that random number once and applies the same result to every selected object, so the objects all shift by an identical amount:

How to get a different random value for each object

Add a second argument to rnd(). That second argument is the seed, and the seed is what makes the result vary:

x+rnd(value; num)

  • value is the upper limit of the random range. Replace it with the largest amount you want to add.
  • num is the index of each selected object. Cinema 4D numbers the selected objects in Object Manager order starting at 0, so every object feeds a different seed into rnd() and gets its own value.

For example:

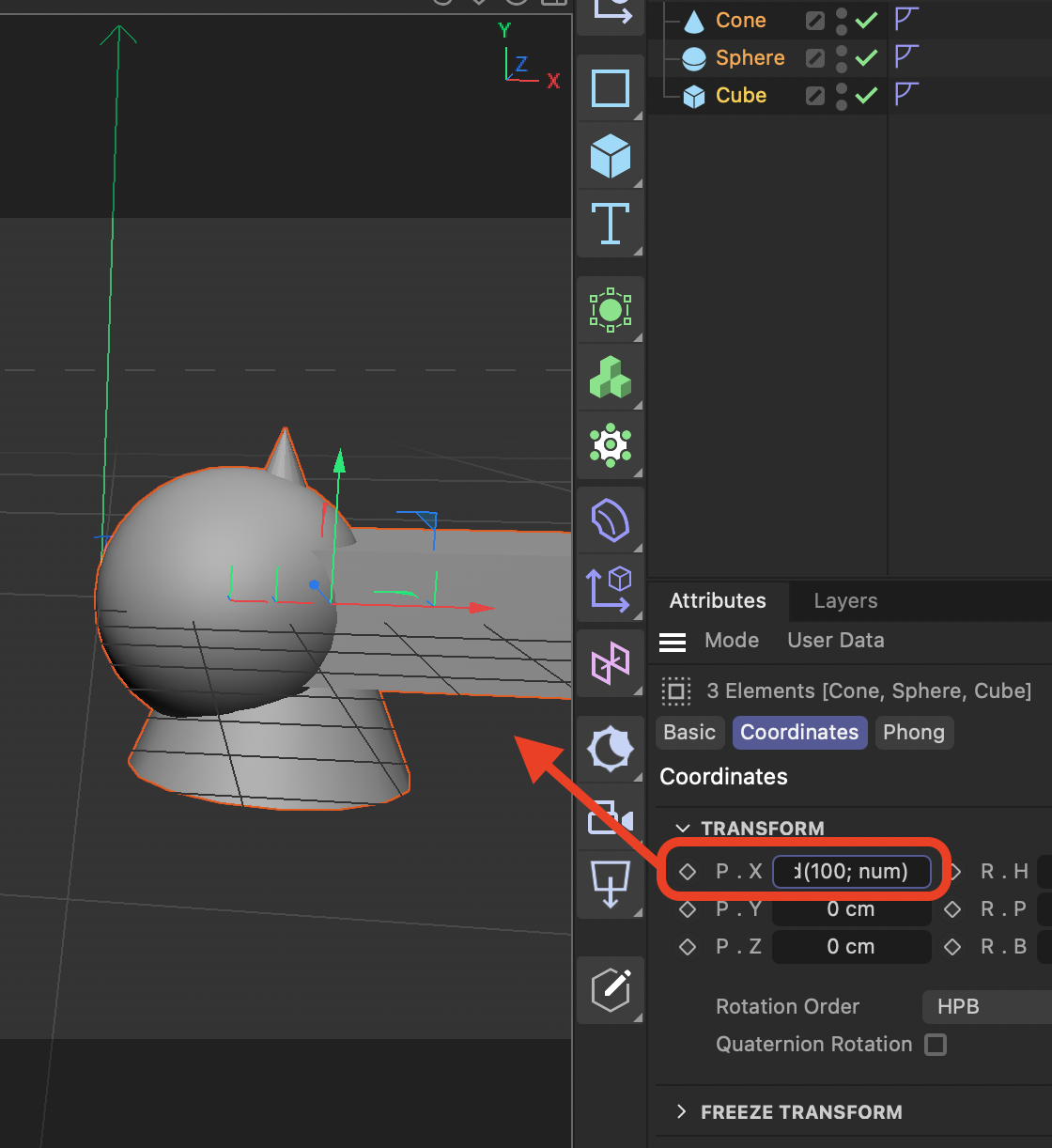

x+rnd(100; num)

Entered in the Position X field, this moves each selected object by a different random amount between 0 and 100:

The separator is a semicolon, not a comma Arguments inside a function are separated by a semicolon. A comma will not work, because Cinema 4D only accepts the dot as a decimal separator. Square brackets are accepted as an alternative, so rnd(100; num) and rnd([100][num]) do the same thing.

Where you can use this

Anywhere the Attribute Manager accepts a number, and for tags as well as objects. Common examples:

  • Position, Rotation, and Scale
  • Light Intensity
  • Texture Offset and Texture Length on a Texture tag
  • Object parameters such as Radius, Height, or Fillet Radius

Select the objects or tags, click into the field, type the expression, and press Enter. The parameter has to be shared, which means every selected item needs to have that same field for the formula to apply.

Other variables you can use with a multiple selection

Random values are only one option. Cinema 4D provides three variables when more than one item is selected:

Variable What it means Example
x The value the field already holds for that object x+200 adds 200 to whatever each object had
num The index of each selected object, counting from 0 in Object Manager order num*20 on 10 lights gives intensities of 0, 20, 40, and so on
tot The total number of selected objects 100*(num/(tot-1)) spreads values evenly from 0 to 100 across the selection



Tip: the result is repeatable Because num is a fixed index rather than a moving target, entering the same expression on the same selection produces the same set of values every time. That is handy when you want a predictable spread, and it also means you need to change the range or the selection order if you want a different result.

Syntax rules worth knowing

  • Use a dot as the decimal separator. Commas and thousands separators are not supported.
  • Every opening bracket needs a matching closing bracket.
  • Spaces are ignored, so you can add them for readability.
  • You can mix units in the same expression. For example, 1m + 10in resolves to 1.254 m regardless of the base unit set in your preferences.
+Pro tip: using formulas on color values

A color parameter is a single swatch by default, so there is no number field to type into. To expose the numbers, right-click the Color parameter and choose Show Sub-channels from the context menu. That splits the swatch into its individual channel fields, and the same formulas and variables work there.

For example, select several materials, right-click Color, choose Show Sub-channels, and enter rnd(1; num) in one of the channel fields to give each material a different value in that channel.

TL;DR

  • The problem: x+rnd(100) on a multiple selection generates one random number and applies it to every selected object.
  • The fix: add a seed. x+rnd(100; num) gives each selected object its own random value between 0 and 100.
  • The variables: x is the current value, num is the object index starting at 0, and tot is the number of selected objects.
  • Where it works: any numeric field in the Attribute Manager, for tags as well as objects, including Position, Rotation, Scale, Light Intensity, and Texture Offset.
  • Separator: use a semicolon between arguments, not a comma. Square brackets work too.

If you have any questions or need further assistance, please submit a support ticket, and our team will be happy to help.
